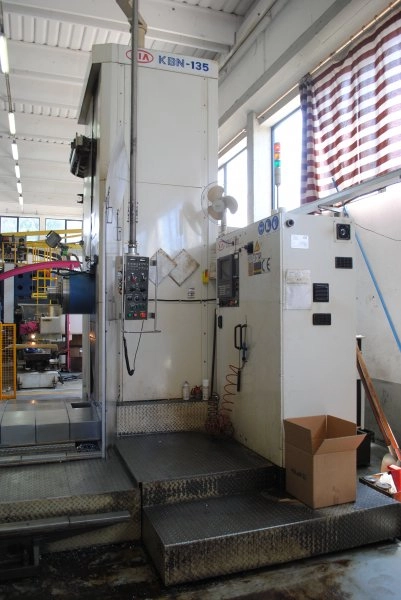

- USED - CNC BORING MACHINE WITH ROTARY AND SHIFTING TABLE
KBN 135
- USED - CNC BORING MACHINE WITH ROTARY AND SHIFTING TABLE
KBN 135
- USED - CNC BORING MACHINE WITH ROTARY AND SHIFTING TABLE
| YEAR | 2003 |
| CODE | 18U6147 |
| LONGITUDINAL TRAVEL | 3000 mm |
| TRANSVERSAL TRAVEL | 2000 mm |
| VERTICAL TRAVEL | 1600 mm |
| QUILL TRAVEL | 700 mm |
| RAPID FEEDS L-T-V | 8 - 8 - 8 m/min |
| QUILL DIAMETER | 135 mm |
| TABLE SIZE | 2000 x 1800 mm |
| MAX ADMITTED LOAD | 10000 Kg |
| SPINDLE | 5 - 2000 rpm; 18,5 - 22 kW; ISO 50 BT |
| GEAR BOX | 4-STEPS |
| TOOL MAGAZINE | CHAIN-TYPE ; 40 POS |
| CONTROL UNIT | FANUC 16-M |
| ROTARY TABLE | CONTINUOUS |
| HIGH PRESSURE COOLANT | 15 Bar |
| WEIGHT | 37200 Kg |
| OVERALL DIMENSIONS | 6340 x 6900 x 4800 mm |
| ACCESSORIES | SWARF CONVEYOR ; CHILLER ; PORTABLE HANDWHEEL |
| PRICE |
0
To be defined
EUR
SoldOut
|
Video Machine
See the machine in operation directly in our video and subscribe to our YouTube channel to stay up to date on upcoming machines
All the mentioned technical data are merely intended to describe the item, they are subject to change without any notice and refer to the standard conditions of a new good. A used good might not have the same figures as the new one.
