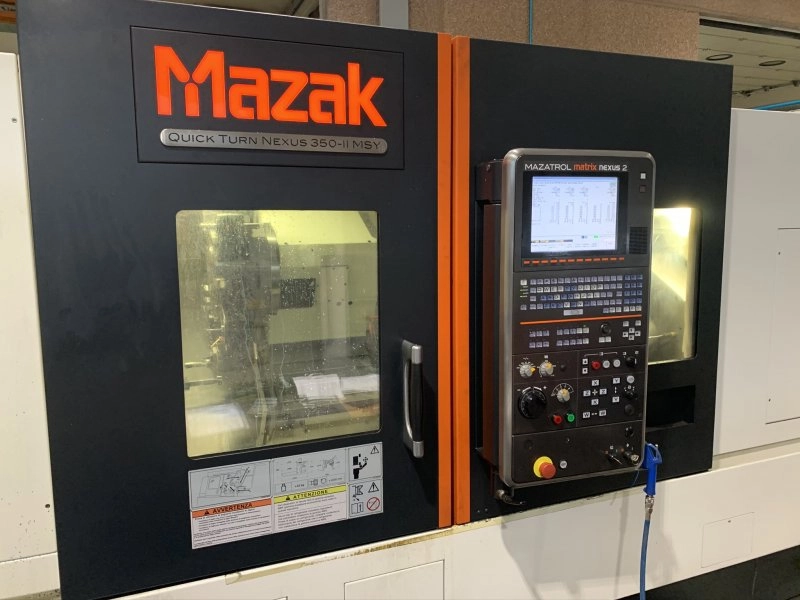

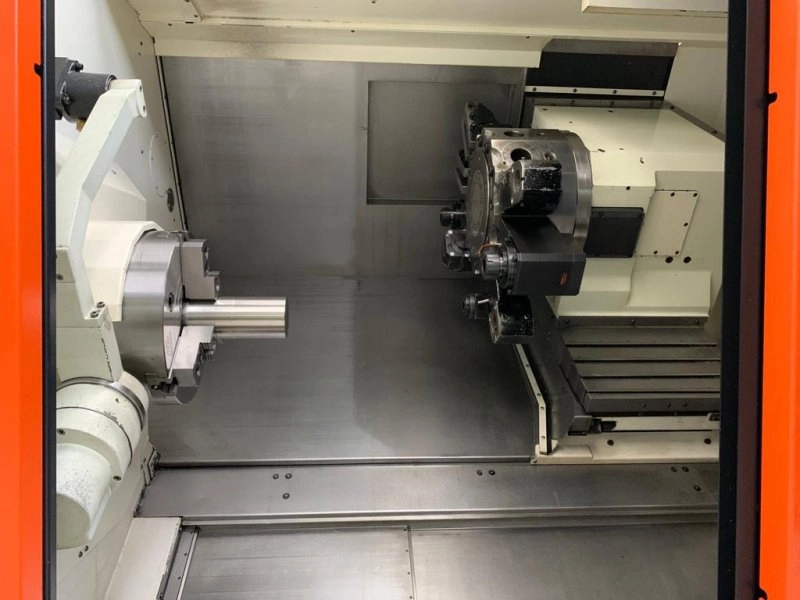

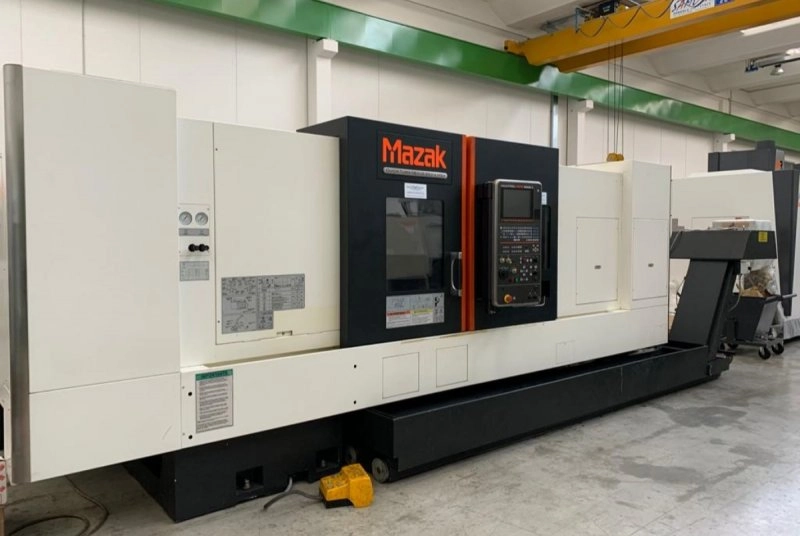

- USED - 5-AXIS CNC LATHE
QTN-350-II MSY
- USED - 5-AXIS CNC LATHE
QTN-350-II MSY
- USED - 5-AXIS CNC LATHE
| YEAR | 2014 |
| CODE | 19U6866 |
| MAX ROTATING DIAMETER | 750 mm |
| MAX TURNING DIAMETER | 420 mm |
| BAR CAPACITY | 102 mm |
| SPINDLE | 35-3300 rpm; 22-30 kW; ASA A2-11 |

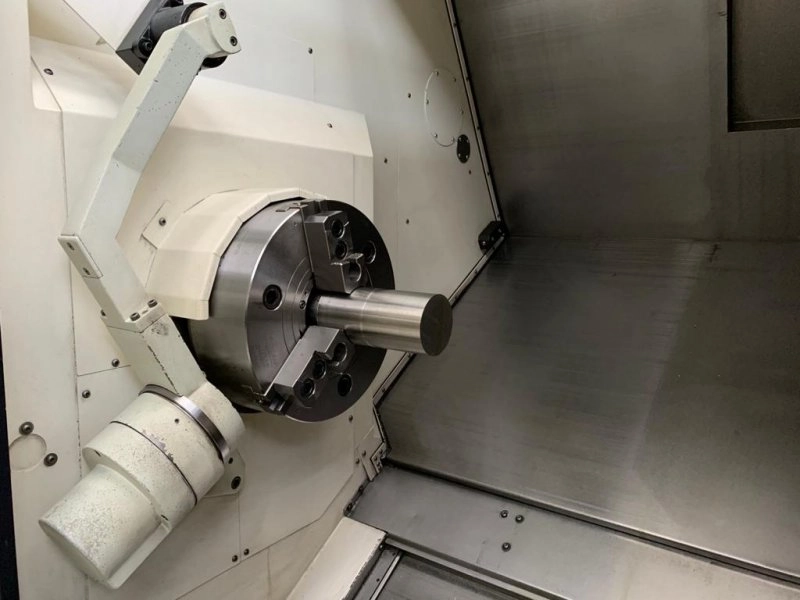

| COUNTER SPINDLE | 35-4000 rpm; 22-26 kW; ASA A2-8 |
| X-AXIS TRAVEL | 270+5 mm |
| Y-AXIS TRAVEL | ± 75 mm |
| Z-AXIS TRAVEL | 1455+150 mm |
| B-AXIS TRAVEL | 1580+5 mm |
| RAPID FEEDS X-Y-Z | 30 - 15 - 30 m/min |

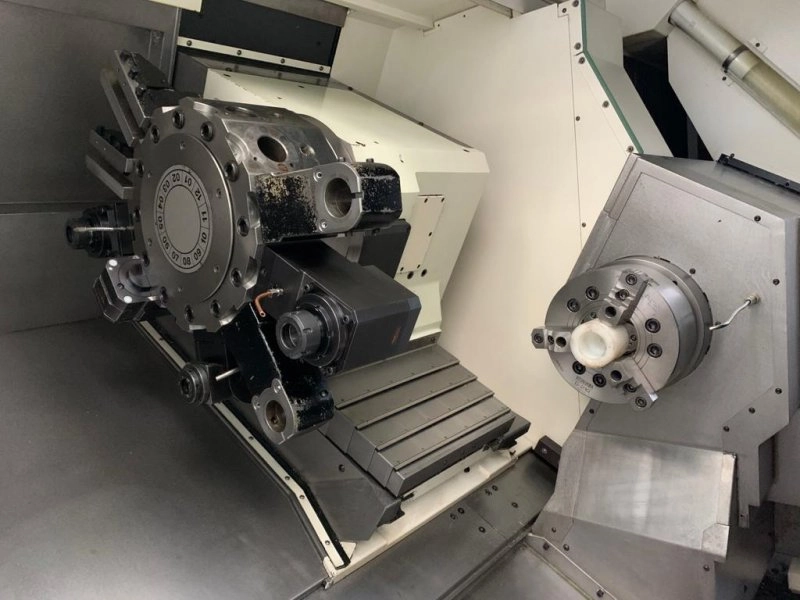

| DRIVEN TURRET HEAD | 12 POS; 4000 rpm; 7,5 kW |

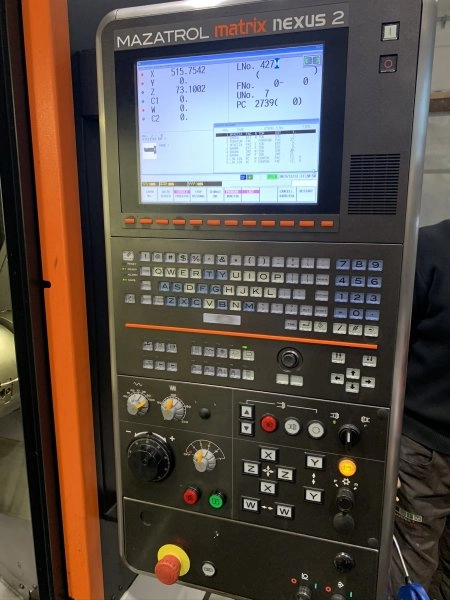

| CONTROL UNIT | MAZATROL MATRIX NEXUS 2 |
| WORKING HOURS | 2748 |
| WEIGHT | 11700 Kg |
| OVERALL DIMENSIONS | 5600 x 2420 x 2169 mm |
| ACCESSORIES | HIGH PRESSURE COOLANT ; SWARF CONVEYOR |
| NOTE | No 4 FIXED TOOLS, No 2 AXIAL TOOLS, No 1 RADIAL TOOL, No 1 ADJUSTABLE ANGLE DRIVEN TOOL; BAR CAPACITY COUNTER SPINDLE ø:75mm |
| PRICE |
0
To be defined
EUR
SoldOut
|
Video Machine
See the machine in operation directly in our video and subscribe to our youtube channel to stay up to date on upcoming machines
All the mentioned technical data are merely intended to describe the item, they are subject to change without any notice and refer to the standard conditions of a new good. A used good might not have the same figures as the new one.
