- USED - 5-AXIS BRIDGE-TYPE VERTICAL MACHINING CENTRE
RXP601DSH
- USED - 5-AXIS BRIDGE-TYPE VERTICAL MACHINING CENTRE
RXP601DSH
- USED - 5-AXIS BRIDGE-TYPE VERTICAL MACHINING CENTRE
| YEAR | 2014 |
| CODE | 22U7679 |
| X-AXIS TRAVEL | 540 mm |
| Y-AXIS TRAVEL | 635 mm |
| Z-AXIS TRAVEL | 400 mm |
| DISTANCE SPINDLE NOSE-TABLE | 50-555 mm |
| RAPID FEEDS X-Y-Z | 60 m/min |
| SPINDLE | 42000 rpm; 14 kW; HSK E40 |
| A-AXIS | ± 115 ° |
| TABLE SIZE | 340 x 340 mm |
| MAX ADMITTED LOAD | 200 Kg |
| TOOL MAGAZINE | CHAIN-TYPE ; 96 POS |
| MAX TOOL DIAMETER | 16 mm |

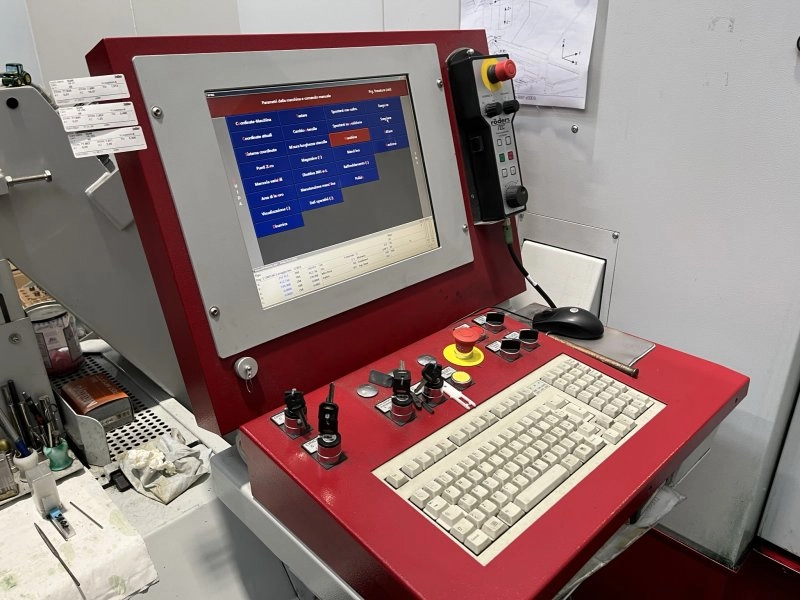

| CONTROL UNIT | ROEDERS RMS6X.xx4 |
| WEIGHT | 10000 Kg |
| OVERALL DIMENSIONS | 2885 x 2760 x 3050 mm |
| ACCESSORIES | SWARF CONVEYOR ; PAPER FILTER ; SPINDLE COOLING SYSTEM ; EXHAUST SYSTEM |
| NOTE | AXES WITH LINEAR MOTOR |
| PRICE |
0
To be defined
EUR
InStock
|
Video Machine
See the machine in operation directly in our video and subscribe to our YouTube channel to stay up to date on upcoming machines
All the mentioned technical data are merely intended to describe the item, they are subject to change without any notice and refer to the standard conditions of a new good. A used good might not have the same figures as the new one.
